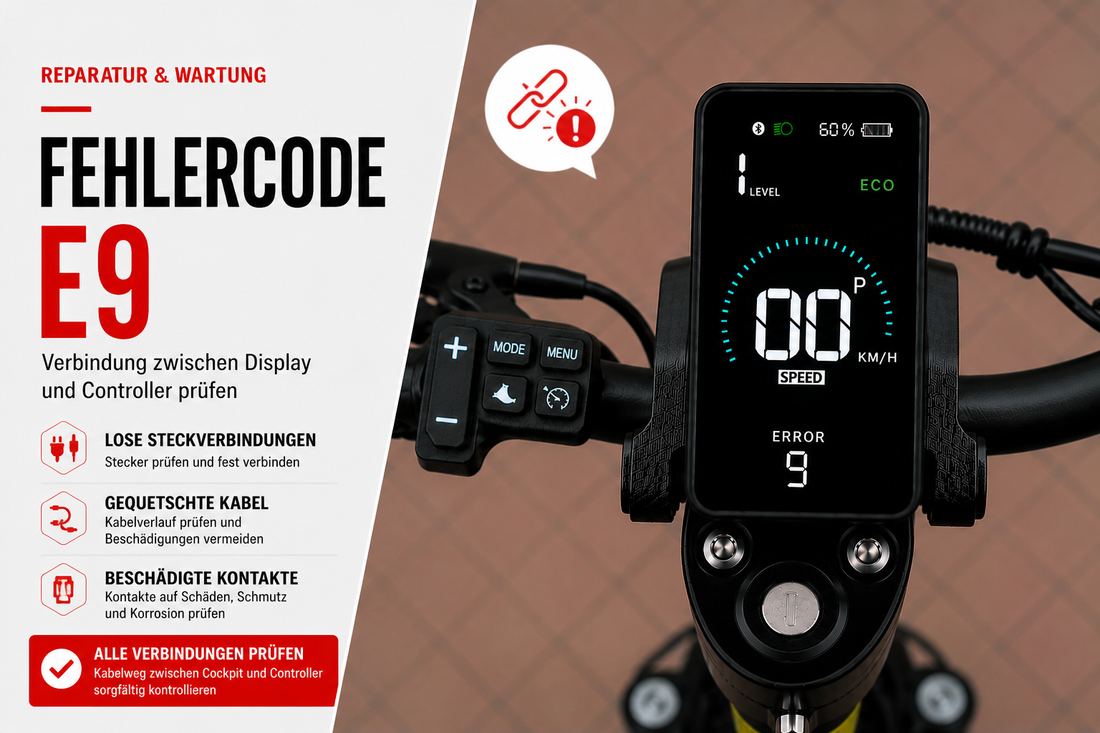

Display shows Error Code 9: Check connection between display and controller
If your WANDLER electric scooter displays Error Code 9, there is usually a malfunction in the connection between the display, control unit, and controller.
Common causes include loose plug connections, pinched cables, damaged contacts, or an interruption in the cable path between the cockpit and controller area. In this guide, we show you which points you should check.
Do not continue riding if the display reacts erratically, the scooter does not start reliably, or Error Code 9 reappears after a brief check. The display, control unit, and controller are central electrical components of the vehicle.
What does Error Code 9 mean?
Error Code 9 indicates a communication problem between the display, control unit, and controller. The display sends and receives signals via the vehicle's wiring. If this connection is interrupted or disturbed, the controller cannot process the signals correctly.
The error does not automatically mean that the display or controller is defective. Often, a loose plug connection or a damaged cable is enough to trigger the error.
Typical causes for Error Code 9
- loose plug connection between display, control unit, and controller
- plug not fully engaged
- pinched or kinked cable
- moisture, dirt, or corrosion on plug contacts
- cable break due to tension, chafing, or incorrect routing
- defective display or control unit
- defective controller
1. Turn off the scooter and park it safely
Turn off the electric scooter completely before checking plug connections or cables. Park the vehicle safely and ensure it cannot roll away.
Work on electrical plug connections should always be carried out carefully. Do not yank cables and only open fairing parts as far as necessary for inspection.
2. Check plug connections on the display and control unit
Start with the visible areas on the handlebars and in the cockpit area. Check if all plug connections are secure and if cables are damaged, pinched, or kinked.
- Is the plug on the display secure?
- Are cables on the handlebars kinked or pinched?
- Was a cable stressed during transport or when folding the handlebars?
- Are there visible damages to cables or plugs?
- Is there moisture or dirt on the contacts?
3. Check cable path to the controller
Error Code 9 can also occur if the connection between the cockpit and controller inside the vehicle is disturbed. Therefore, check the cable path from the display or control unit towards the controller area.
Pay particular attention to areas where cables are routed through fairings or lie close to moving parts. Cables must not be pinched, sharply bent, or routed along sharp edges.
4. Carefully check the controller compartment
If the error continues to be displayed after a visual inspection in the cockpit area, the plug connection in the controller area should be checked. Depending on the model, the controller compartment may need to be opened.
- Turn off the scooter completely.
- Carefully open the controller compartment, if necessary.
- Locate the plug connections between the display/control unit and the controller.
- Check the plugs for a secure fit.
- Carefully detach the plugs and check contacts for dirt, moisture, or damage.
- Reconnect the plugs completely and correctly.
- Close the controller compartment and turn the scooter back on.
A slightly loose plug connection can be enough for the display to not correctly recognize the controller or for stable communication to be impossible.
5. Check cables for pinching and damage
Carefully check all accessible cables for visible damage. Particularly important are areas where cables run through the frame, fairing, handlebar area, or controller compartment.
Critical points include:
- pinched cables
- bare spots on the insulation
- sharp kinks
- loose or bent pins on the plug
- moisture in the plug area
- chafing points on the frame or fairing
Visibly damaged cables should not be temporarily reused. Improper repair can lead to further errors or consequential damage.
6. When can the display or controller be defective?
If all plug connections are secure, there is no visible cable damage, and Error Code 9 still persists, there may be a defect in the display, control unit, or controller.
In this case, the vehicle should be professionally inspected. The display or controller should only be replaced if the wiring has been checked beforehand and the compatibility of the spare part is ensured.
Quick guide: Check Error Code 9
- Turn off the scooter and park it safely.
- Check the plug connections on the display and control unit.
- Inspect cables in the cockpit area for kinks and pinches.
- Check the cable routing to the controller.
- Carefully open the controller compartment, if necessary.
- Check the plug connections on the controller.
- Loosen the plugs, check the contacts, and reconnect them firmly.
- Restart the scooter.
- If the error persists: contact WANDLER service or a specialist workshop.
Frequently Asked Questions about Error Code 9
Can I continue riding with Error Code 9?
No. If Error Code 9 is displayed, the scooter should not be used further until the cause has been investigated. Communication between the display and the controller is crucial for operation.
Is the display always defective with Error Code 9?
No. The cause is often a loose plug connection, a damaged cable, or a contact problem. Only when these points have been ruled out should the display or controller be more thoroughly investigated as possible causes.
Can moisture cause the error?
Yes. Moisture or dirt on plug contacts can interfere with signal transmission. The contacts should be dry, clean, and undamaged.
When should I contact WANDLER service?
If the error persists after checking the plug connections, if cables are damaged, or if the display or controller may need to be replaced.
Need support?
If your WANDLER electric scooter continues to display Error Code 9 or if you suspect a damaged plug connection, a defective display, or a controller error, contact WANDLER service. We will help you with the inspection and the right spare part.
