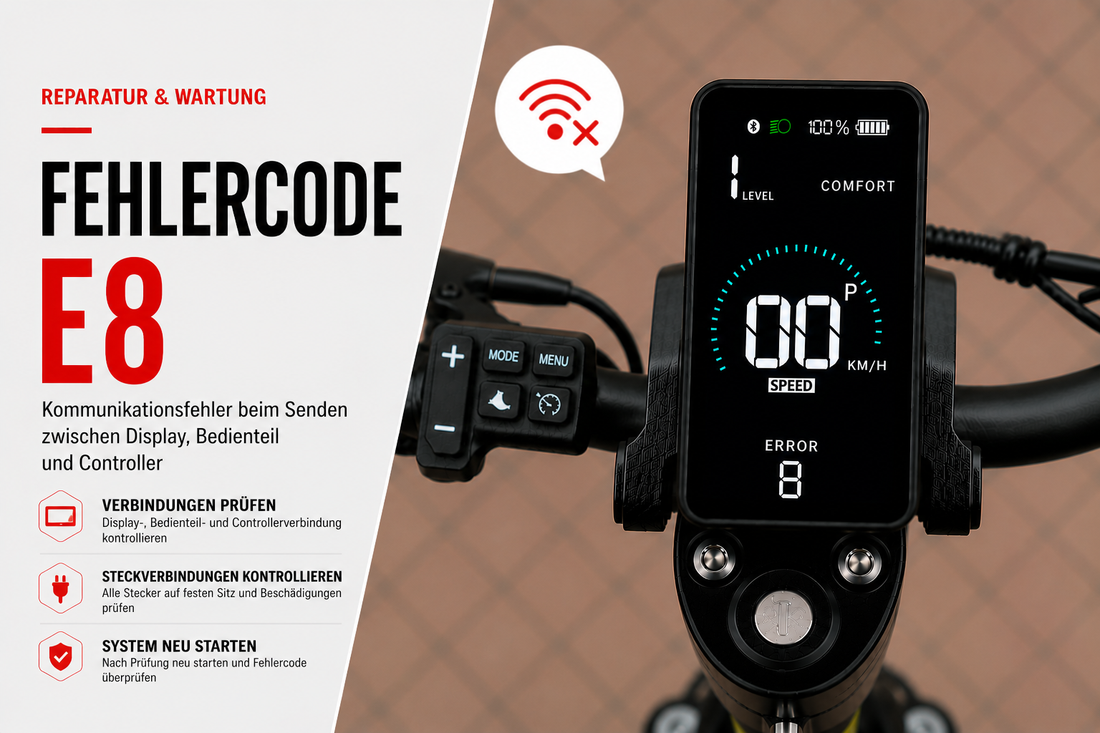

The display shows Error Code 8

If your WANDLER electric scooter displays Error Code 8, it indicates a communication error during transmission. This means that the communication between the display, control unit, and controller is not functioning correctly.

Often, a plug connection is loose, not fully connected, or a cable or contact is faulty. If all connections have been checked and the error is still displayed, the display or control unit must be inspected and, if necessary, replaced.

What does Error Code 8 mean?

Error Code 8 indicates that a signal is not being transmitted correctly between the electronic components. This can affect the display, the control unit on the handlebar, or the connection to the controller.

The controller processes signals from the display, control unit, throttle, brake, and other components. If communication between these components is disrupted, the scooter may show an error message or not react as expected.

Common causes of Error Code 8

• loose plug connection on the display
• loose or incorrectly seated connection on the control unit
• controller plug connection not fully connected
• damaged or pinched cable
• contact problem due to moisture, dirt, or corrosion
• defect in the display
• defect in the control unit
• in rare cases, a problem with the controller

Step 1: Turn off the scooter

First, turn off the electric scooter completely. If possible, disconnect the power supply or remove the battery, if your model allows this.

Step 2: Check display connection

First, check the connection on the display. An improperly seated plug connection can prevent signals from being sent or received correctly.

• carefully check the display plug
• if necessary, loosen and reconnect the plug firmly
• ensure the connection is straight
• check contacts for moisture, dirt, or corrosion
• check the display cable for kinks, pinches, or damage

The plug must be fully and cleanly connected. Even a slightly loose connection can trigger a communication error.

Step 3: Check control unit connection

If the display connection is properly seated, the control unit on the handlebar should be checked. The control unit transmits inputs such as mode changes, light functions, or other control commands to the system.

• check the plug connection on the control unit
• check the control unit cable for visible damage
• loosen and reconnect the plug firmly, if possible
• check for moisture or contamination
• check if buttons are sticking or reacting unusually

Step 4: Check connection to the controller

If the display and control unit have been checked, the connection to the controller should be inspected. There, too, a plug may be loose or not have a clean contact.

• carefully check the controller plug connections
• check the display and control unit connections on the controller
• loosen and reconnect plugs firmly if necessary
• check contacts for moisture, dirt, or corrosion
• check the cable routing between the handlebar and the controller

Especially after transport, repair work, or work on the handlebars, a connection may no longer be properly seated.

Step 5: Check cables for damage

Additionally, check the cables between the display, control unit, and controller. Even minor external damage can be enough to prevent stable signal transmission.

• check visible insulation
• look for pinched or trapped cables
• check for kinks
• check for chafing
• do not pull or twist cables forcefully

If a cable is visibly damaged, the scooter should not be used further until the connection has been professionally inspected or repaired.

Step 6: Restart the scooter

After the display, control unit, and controller connections have been checked, the scooter can be switched on again. If Error Code 8 is no longer displayed, a loose plug connection or a contact problem was very likely the cause.

If the error persists despite all connections being properly seated, the display and control unit should be examined more closely.

If Error Code 8 is still displayed

If all plug connections have been checked and the error is still displayed, there may be a defect in the display or the control unit. In this case, it should be determined which component is disrupting communication.

Depending on the error, replacing the display, the control unit, or both components may be necessary. In rare cases, the connection to the controller or the controller itself should also be checked.

Replacing the display or control unit

When replacing the display or control unit, it must be ensured that the replacement part matches the specific WANDLER model. Model, year of manufacture, plug connection, and cable length must match.

• check suitable WANDLER model
• note year of manufacture and version
• compare display version and control unit version
• check plugs and cable lengths
• do not replace components under voltage
• perform a function test after installation

Conclusion

Error Code 8 on the WANDLER electric scooter indicates a communication error during transmission. First, check the connections between the display, control unit, and controller, as well as all visible cables.

If all connections are properly seated and the error is still displayed, the display or control unit must be checked and, if necessary, replaced. In rare cases, the controller connection or the controller itself may also be affected.
