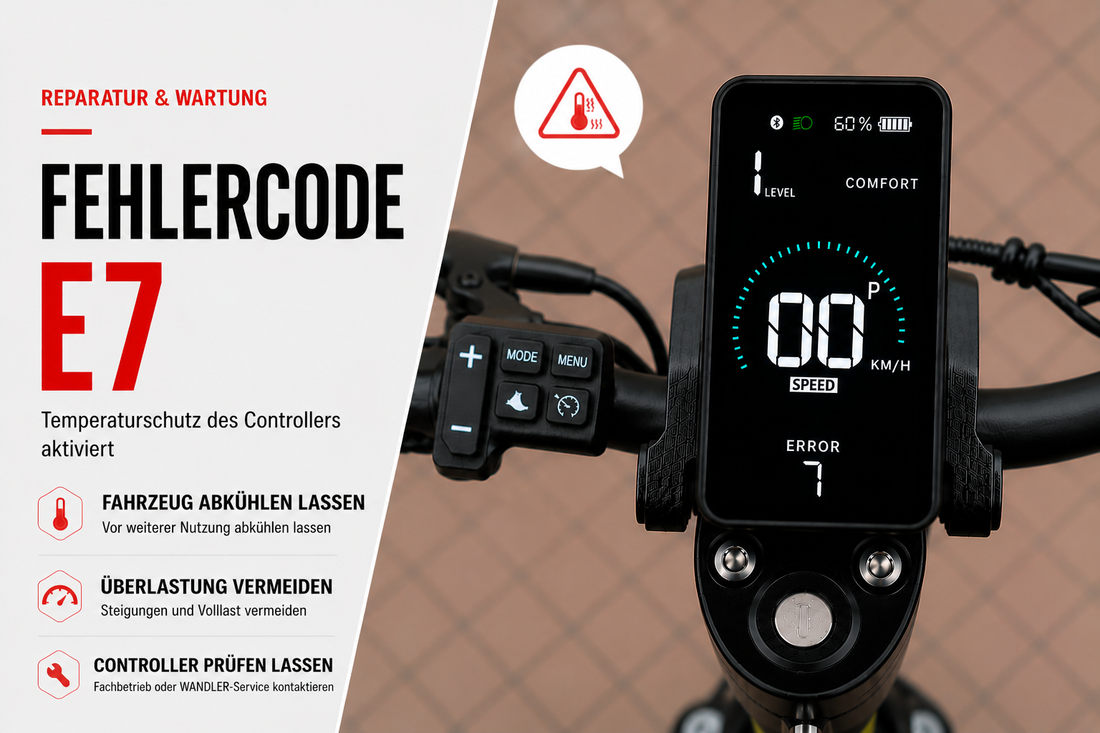

The display shows Error Code 7
If your WANDLER electric scooter displays Error Code 7, the controller's temperature protection is active. This means: The controller detects excessive temperature or thermal stress and protects the system from further overload.
In this case, the vehicle should first cool down. Additionally, it should be checked whether the scooter has been overloaded, for example, due to long inclines, heavy loads, continuous riding under high load, or very warm ambient temperatures.
Error Code 7 means: The controller's temperature protection has been activated. Let the scooter cool down, avoid overloading, and have the controller checked if the error reappears.
What does Error Code 7 mean?
Error Code 7 indicates that the controller is under thermal stress. The controller is the central control unit of the electric scooter and regulates, among other things, the power to the motor. If the controller gets too hot, the system may limit power or display an error message.
The error serves as a protective function. It is intended to prevent electrical components from being damaged by excessive temperature or continuous overload.
Common causes of Error Code 7
- Controller has become too hot
- long ride under high load
- continuous inclines or frequent starting on hills
- heavy load or additional burden
- riding in high ambient temperatures
- insufficient cooling time after heavy use
- possible defect or thermal issue with the controller
Step 1: Park the scooter safely
If Error Code 7 is displayed, park the scooter safely and turn it off. Do not continue riding as long as the error is active or the scooter behaves unusually.
Do not continue riding if the scooter displays Error Code 7, reduces power, or behaves unusually. Let the vehicle cool down completely first.
Step 2: Let the vehicle cool down
Leave the scooter turned off so that the controller and electrical components can cool down. If possible, do not place the scooter in direct sunlight, but in a shady, well-ventilated area.
- Turn off the scooter
- Park the vehicle safely and in the shade
- do not continue riding immediately
- Let the controller and vehicle cool down
- turn it on again after sufficient cooling time
If the error no longer appears after cooling down, a temporary thermal load was likely the cause.
Step 3: Avoid overloading
If Error Code 7 occurs after heavy use, the riding style should be adjusted. Especially inclines, heavy loads, frequent starting, and long rides at full throttle can heat up the controller more.
- avoid long rides at full throttle
- take breaks on inclines
- avoid heavy loads
- do not ride continuously at maximum load
- pay attention to temperature development in very warm weather
If the error only occurs after heavy use and disappears after cooling down, this often indicates an overload or temperature reaction.
Step 4: Observe repeated occurrences
If Error Code 7 appears once after heavy use, cooling down may be sufficient. However, if the error occurs repeatedly or appears after a short ride, the controller should be checked more closely.
- Does the error only occur after inclines?
- Does the error also appear during normal riding?
- Is the error cleared after cooling down?
- Does the error return immediately after switching on?
- Does the scooter have noticeably less power?
These observations help to distinguish between a normal protective reaction and a possible defect.
Step 5: Have the controller checked
If Error Code 7 is displayed repeatedly despite cooling down, the controller should be checked. Possible causes include thermal problems, contact problems, an incorrect load situation, or a defect in the controller.
The controller is a central electrical component. A check or replacement should only be carried out with suitable expertise and a matching spare part.
If Error Code 7 continues to be displayed
If the scooter has completely cooled down and Error Code 7 still appears, the vehicle should not be subjected to further load. In this case, there may be a problem with the controller or the electrical system. system.
Especially if the error returns immediately after switching on or after a short ride, an inspection by WANDLER service or a specialist workshop is advisable.
The controller is safety and function relevant. If the temperature protection repeatedly triggers, the scooter should not be operated continuously without checking the cause.
Check or replace controller
If a defect in the controller is suspected, it must be checked which controller matches the respective WANDLER version. Model, year of manufacture, motor power, and plug connections must match.
- check suitable WANDLER model
- note year of manufacture and version
- compare motor power and controller version
- check connectors and cable lengths
- do not change controller under voltage
- perform a function test after installation
Conclusion
Error Code 7 on the WANDLER electric scooter indicates the controller's temperature protection. First, the vehicle should be safely parked and completely cooled down.
If the error disappears after cooling down, it was likely an overload or thermal stress. If the error occurs repeatedly or persists, the controller should be checked.
Do you need help with your display?
If your WANDLER display shows error codes or you are unsure which setting is correct, contact WANDLER support. It's best to have the model, year of manufacture, error code, and a photo of the display ready.
