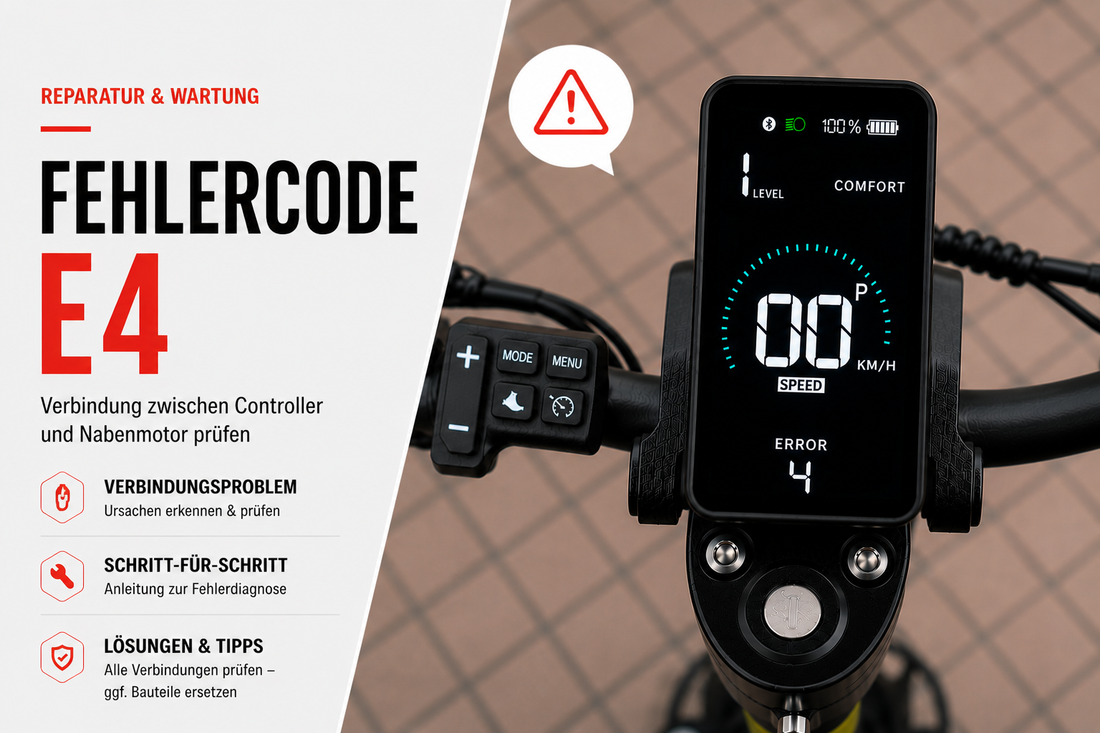

Display shows Error Code 4: Check connection between controller and hub motor

If your WANDLER electric scooter displays Error Code 4, there is often a problem with the connection between the controller and the hub motor. This could be due to a loose plug connection, a damaged cable, a pinched wire, or a defect in the controller or motor.

In this guide, we explain what you should check and when a repair by a specialist workshop or WANDLER service is advisable.

What does Error Code 4 mean?

Error Code 4 indicates that the control system detects a problem in the motor connection area. The controller processes the signals and supplies the hub motor with the necessary power. If this connection is disturbed, the motor cannot be controlled correctly.

Typical causes include:

• loose or not fully engaged plug connections
• pinched or damaged motor cables
• moisture or dirt on plugs and contacts
• cable breakage due to tension, kinking or chafing
• controller defect
• hub motor defect

1. Switch off the scooter and park it safely

First, park the electric scooter safely and switch it off completely. Do not work on plug connections or cables while the vehicle is switched on.

When working on the controller compartment or electrical plug connections, the scooter should be secured against rolling away. Proceed carefully to avoid further damage to any cables.

2. Check motor cable for damage

First, check the visible cable in the area of the hub motor. Pay particular attention to areas where the cable is moved, bent, or routed along the vehicle.

Check for:

• Is the cable pinched?
• Are cracks, chafing or bare spots visible?
• Has the cable been kinked or pulled hard?
• Is the cable gland on the motor clean?
• Is the cable touching moving parts anywhere?

Visibly damaged motor cables should not be used provisionally. A damaged cable can lead to malfunctions, failures or consequential damage.

3. Check plug connections between motor and controller

A common cause of Error Code 4 is an incorrectly seated plug connection. Depending on the model, the connection to the controller is located inside the vehicle or in the controller area.

The plug must be fully connected. Even a slightly loose connection can prevent the signal between the controller and motor from being correctly recognized.

4. Check cable routing and chafing points

Also check the cable routing from the motor towards the controller. The cable must not chafe on sharp edges, must not be pinched, and must not be under tension.

Especially after transport, repair work, wheel changes or falls, it can happen that a cable is no longer routed correctly or a plug connection has come loose.

5. When can the controller or hub motor be affected?

If all plug connections are correctly seated, no visible cable damage is present, and Error Code 4 continues to be displayed, a defect in the controller or hub motor may be present.

In this case, no further troubleshooting should be attempted through improper experimentation. The controller and hub motor are central electrical components of the drive. Incorrect diagnosis or faulty assembly can cause further damage.

6. When should WANDLER service be contacted?

Contact WANDLER service if:

• Error Code 4 still appears after checking the plug connections
• a cable is visibly damaged, pinched or broken
• the motor no longer responds
• the scooter jerks or accelerates unevenly
• you are unsure about checking the controller area
• the controller or hub motor may need to be replaced

Quick guide: Check Error Code 4

Frequent questions about Error Code 4

Can I continue driving with Error Code 4?

No. If Error Code 4 is displayed, the scooter should not be used further until the cause has been checked. The connection between the controller and the hub motor is crucial for safe operation.

Is the hub motor always defective?

No. Often the cause is not directly with the motor, but with a loose plug connection, a pinched cable or a damaged wire. Only when these points have been ruled out do the controller or hub motor come into consideration as possible causes.

Can a loose plug connection trigger the error?

Yes. A plug connection that is not fully seated can prevent the controller from correctly recognizing the hub motor or from being able to control it cleanly.

Can I repair a damaged motor cable myself?

Provisional repairs are not advisable. Motor cables and controller connections are safety-relevant electrical connections. In the event of visible damage, the vehicle should be professionally inspected and repaired.
