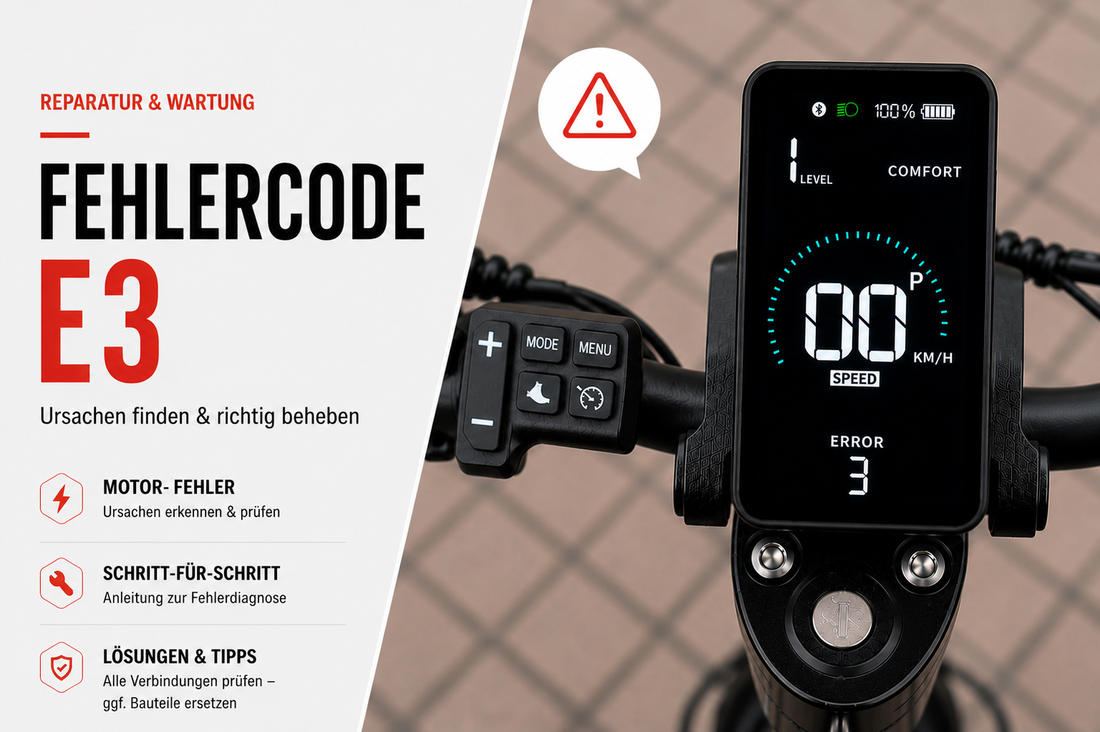

The display shows Error Code 3

If your WANDLER electric scooter displays Error Code 3, there is usually a faulty connection to the hub motor. In many cases, the cause is the cable between the controller and the hub motor, a loose plug connection or a damaged or pinched cable.

Therefore, the error should first be checked in the area of the cable connection. Only if cables and plug connections have been checked and the error continues to be displayed, a defect of the hub motor or, in rare cases, a defect of the controller can be considered.

What does Error Code 3 mean?

Error Code 3 indicates that the controller does not detect a proper connection to the hub motor. The hub motor is responsible for propelling the electric scooter. If the connection between the controller and the motor is interrupted or faulty, the scooter cannot control the motor correctly.

This can result in the scooter not starting, reacting erratically, or immediately displaying an error message on the display.

Common causes for Error Code 3

• loose plug connection between controller and hub motor
• motor plug not fully engaged
• damaged motor cable
• pinched or kinked cable
• chafing or damaged cable insulation
• contact problem due to moisture, dirt, or corrosion
• defective hub motor
• in rare cases, a defective controller

Step 1: Turn off the scooter

Before checking cables or plug connections, the electric scooter should be switched off. If possible, disconnect the power supply or remove the battery, if this is possible with your model.

Step 2: Check the cable between the controller and the hub motor

First, check the cable between the controller and the hub motor. Pay particular attention to visible damage, pinched areas, kinks, or areas where the cable is stressed by movement or components.

• Check cable for visible damage
• Check for kinks or pinches
• Check cable routing along the swing arm and wheel
• Look for chafing or damaged insulation
• Do not pull, twist, or sharply bend cables forcefully

Especially in the area of the wheel guide, swing arm, and cable bushing, stresses can occur. If the cable is pinched, crushed, or damaged there, the connection to the hub motor can be disrupted.

Step 3: Check the plug connection

If the cable appears externally undamaged, the plug connection between the controller and the hub motor should be checked. The connection must be tight, clean, and fully plugged in.

• Carefully check the plug connection
• If necessary, loosen and reconnect the plug firmly
• Ensure the plug is seated straight
• Check contacts for moisture, dirt, or corrosion
• Check if the plug is fully engaged

Step 4: Check cables for kinks and damage

In addition to the plug connection, the condition of the cable is crucial. A cable may appear largely intact externally, but be internally damaged by crushing or sharp bending.

• Check areas with sharp bends
• Check cable sections near the frame, swing arm, and wheel
• Look for pressure marks from cable ties or fairing
• Take visible breaks or damaged insulation seriously
• Do not use the scooter further if there is visible damage

If a cable is visibly damaged, the error should not be ignored. A damaged connection can lead to further failures and should be professionally repaired.

Step 5: Restart the scooter

After the cable and plug connection have been checked, the scooter can be switched on again. If Error Code 3 is no longer displayed, a loose plug connection or a contact problem was very likely the cause.

If the error persists, even though cables and plugs are correctly seated and no visible damage is apparent, the drive unit should be checked more closely.

If Error Code 3 continues to be displayed

If the connection between the controller and the hub motor has been checked and the error still appears, a defect in the hub motor may be present. This is less common than a loose cable or a faulty plug connection, but should be considered.

In rare cases, the controller itself may also be defective. The exact cause should then be systematically checked before components are replaced.

Possible defects: Hub motor or controller

If cables, plug connections, and visible wiring are in order, the following causes are possible:

• internal cable break in the motor cable
• contact problem within the plug connection
• defect in the hub motor
• in rare cases, a defect in the controller

Check or replace the hub motor

If the hub motor is suspected as the cause, it must be checked which model, year of manufacture, and version of the WANDLER electric scooter is affected. Motor power, cable length, plug connection, and installation position must match the vehicle.

• Check compatible WANDLER model
• Note year of manufacture and version
• Compare motor power
• Check plug and cable length
• Note installation position
• Perform a function test after installation

Conclusion

Error Code 3 on the WANDLER electric scooter means that the connection to the hub motor is faulty. In most cases, the cause is a loose plug connection, a damaged cable, or a pinch between the controller and the hub motor.

Therefore, first check the cable, plug connection, cable routing, and visible damage. If the error is still displayed despite a correct connection, the hub motor may be defective. In rare cases, a defect in the controller may also be considered.
