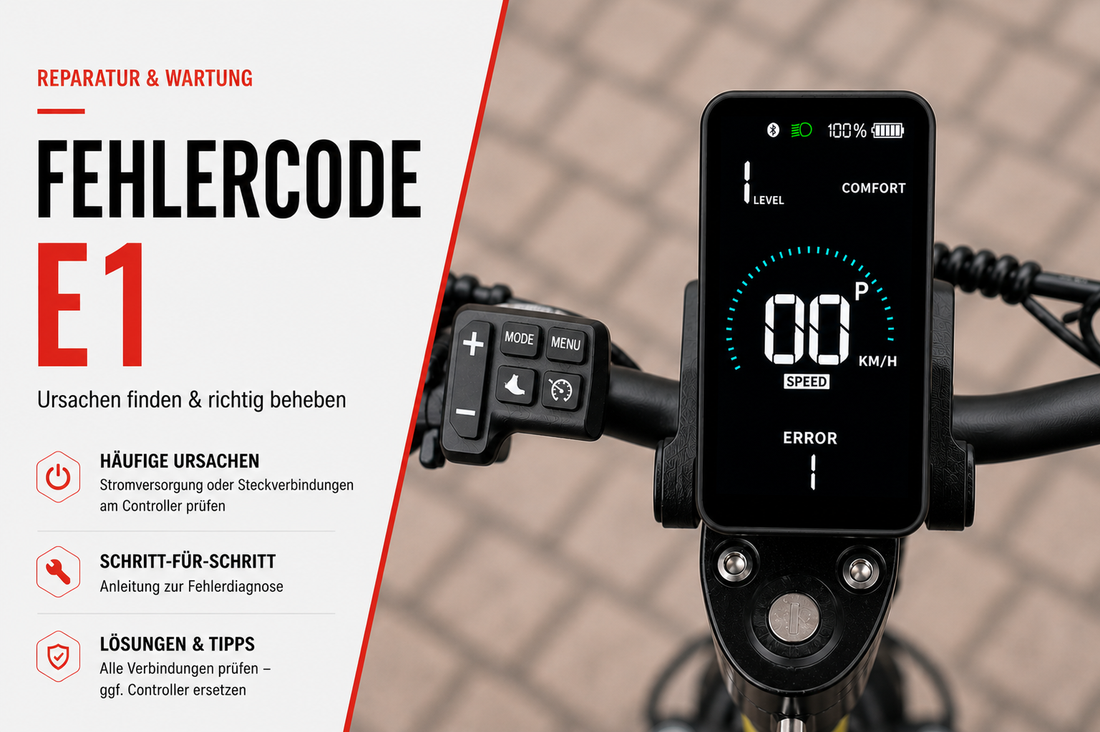

The display shows Error Code 1
If your WANDLER electric scooter shows Error Code 1, the cause is usually in the area of the power supply or a plug connection at the controller. Often, a plug is loose, not fully connected or the power supply is not properly transmitted to the controller.
The controller is the central control unit of the electric scooter. It processes signals from the battery, display, throttle, motor, and other electrical components. If an important connection is interrupted or faulty, the scooter cannot start correctly or displays an error message on the display.
Error Code 1 means: check power supply and plug connections on the controller. If everything is correctly connected there and the error still appears, the controller may be defective.
What does Error Code 1 mean?
Error Code 1 indicates a problem in the power supply or controller connections. In this case, the controller does not detect a clean connection or does not receive the necessary electrical supply.
The cause can be simple, such as a loosely seated plug. However, it can also be a damaged cable, a contact problem, or ultimately a defective controller.
Common causes for Error Code 1
- loose plug connection on the controller
- plug not fully engaged
- interrupted power supply
- damaged or pinched cable
- contact problem due to moisture, dirt, or corrosion
- defective controller, if all connections have been checked
Step 1: Turn off the scooter
Before checking plug connections, the electric scooter should be turned off. If possible, disconnect the power supply or remove the battery, if this is possible with your model.
Do not work on electrical plug connections while the scooter is switched on. If you are unsure, have the inspection performed by a qualified person.
Step 2: Check the power supply
First, check that the battery is correctly inserted and that the main power supply connection is secure. Pay attention to whether cables are visibly damaged, kinked, pinched, or loose.
- insert battery correctly
- check battery connection and main plug
- inspect visible cables for damage
- look for loose or not fully connected plugs
- keep connections dry and clean
If the power supply is not properly established, the controller cannot work correctly. This can cause Error Code 1 to appear on the display.
Step 3: Check plug connections on the controller
Once the power supply has been checked, the plug connections on the controller should be inspected. It is especially important that all plugs are fully connected and not just loosely seated.
- carefully inspect controller plugs
- loosen and reconnect plugs firmly if necessary
- ensure the plug connection is straight
- check contacts for moisture, dirt, or corrosion
- inspect cable routing for kinks and pinches
Even a slightly loose plug can be enough for the controller not to detect a stable connection. Therefore, the plug connections should be checked carefully and without force.
Step 4: Check cables for damage
In addition to the plugs themselves, the cables should also be checked. Pay special attention to areas where cables can be stressed by movement, mounting points, or fairing parts.
- check visible insulation
- identify pinched or trapped cables
- inspect kinks
- look for chafing marks
- do not pull, twist, or forcefully move cables
If a cable is visibly damaged, the scooter should not be used further until the connection has been professionally checked or repaired.
Step 5: Restart the scooter
After the power supply, controller plugs, and cables have been checked, the scooter can be switched on again. If Error Code 1 is no longer displayed, a loose or faulty connection was very likely the cause.
If the error persists, even though all connections are correct and no damage is visible, the controller should be checked more closely.
If Error Code 1 continues to be displayed
If all plug connections and the power supply have been checked and the error still appears, a defective controller can be assumed.
In this case, the controller must be replaced. Since the controller is a central electrical component, the replacement should only be carried out by a qualified person or a suitable workshop.
Replacing the controller
When replacing the controller, care must be taken to ensure that the replacement controller matches the respective WANDLER version. Model, year of manufacture, motor power, and plug connections must match.
- check suitable WANDLER model
- note year of manufacture and version
- compare motor power and controller version
- check plugs and cable lengths
- do not replace the controller under power
- perform a functional test after installation
An incorrect or incompatible controller can lead to further errors. Therefore, always check the model, year of manufacture, and plug connections before replacement.
Conclusion
Error Code 1 on the WANDLER electric scooter is usually related to the power supply or loose plug connections on the controller. Therefore, the battery connection, main connection, controller plugs, and visible cables should be checked first.
If all connections are correct and the error continues to be displayed, the controller is probably defective and needs to be replaced.
Do you need help with your display?
If your WANDLER display shows error codes or you are unsure which setting is correct, contact WANDLER service. It is best to have the model, year of manufacture, error code, and a photo of the display ready.
